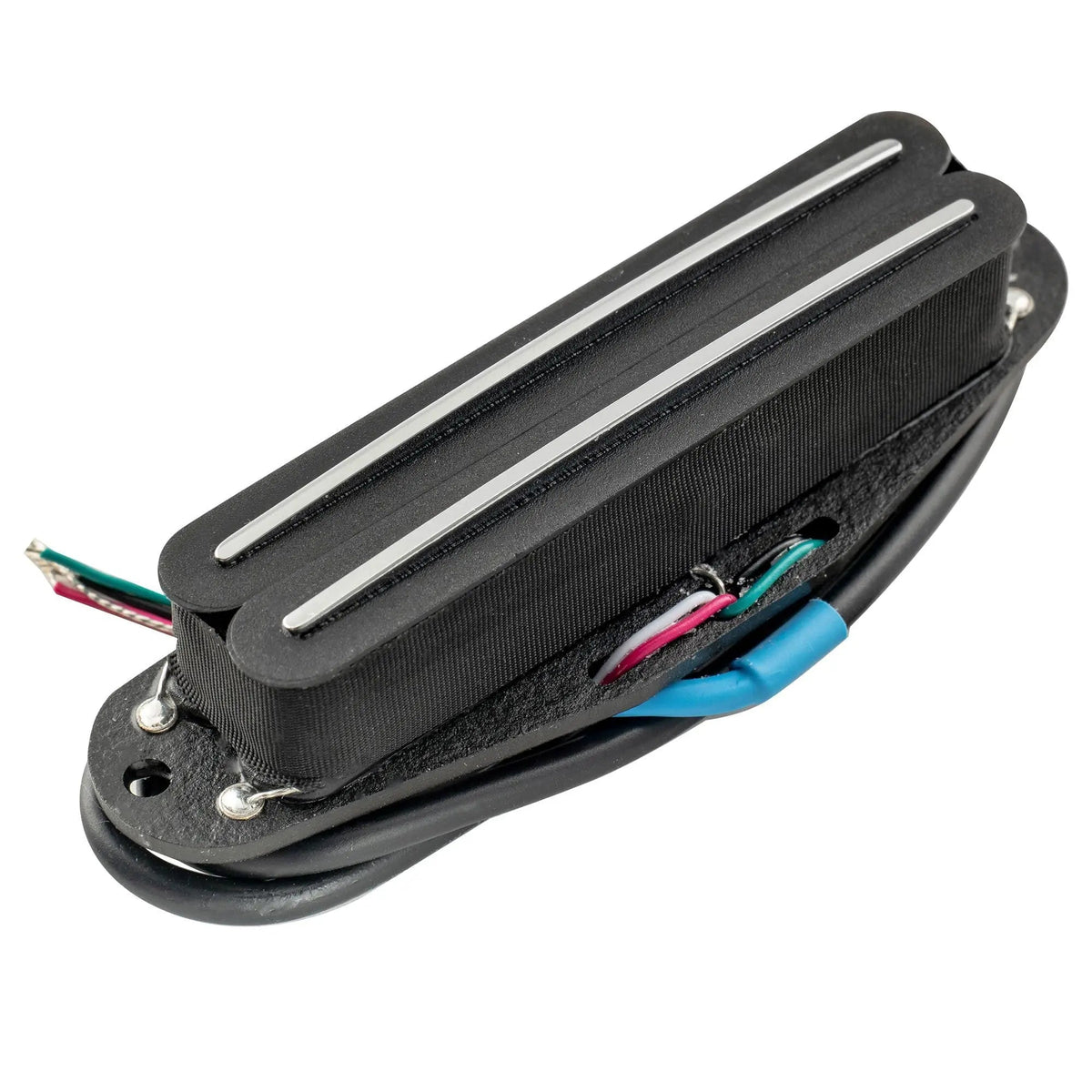

Fits Strat style electric guitar, all position (neck/middle/bridge) Single coil sized rail blade humbucker, featuring Alnico 5 magnets, sounds thick and full, with medium output, more power is concentrated in the mids and low end for a bigger sound with more crunch. Dual-resonance coils with twin-blade poles allows the best string coverage and clarity, brings outstanding hum-canceling performance, especially for notes that are bent on the highest frets Rail length: 62mm (2-7/16 inch), mounting screw holes distance: 76.5mm (3-1/64 inch) Resistance: 9.8K, inductance: 5.7H. Tolerance: 0.5K for single coil, 1K for humbucker. The resistance value will change according to temperature and humidity. Usually, the resistance value will be high in hot and dry weather, be low in cold and wet weather. In extreme cases, the resistance value tolerance will be greater. Magnet: Alnico 5; PC bobbin; fiber baseplate, wiring: 4P Shield
Package Includes
1pc pickup and mounting accessories. Note: Our screws maybe will not fit your usage, please use your own if you can
